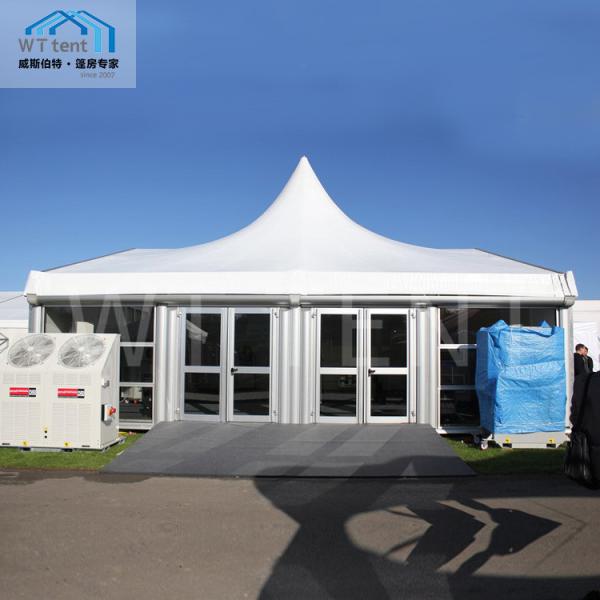

Aluminum Mixed Custom Made Tents Special White PVC Tapered Roof Cover
Overview:
Nowadays more and more customers prefer to hold the activity in a special type tent to attract more people. The customized mixed tent is based on the party or event tent, it is a combination of a party tent and high peak tent,or a combination of the party and the half multi-side tent,it can be tailored to your needs and the theme of your event,to show elegant activity temperament,so the mixed tent is can be customized high -class tent.for any more information,or any inquiry,please feel free to contact me.
Features:
1). No pole inside, 100% space is available;
2). Combination of a party tent and high peak tent,or a combination of the party and the half multi-side tent,elegant form
3). 100% waterproof, proof, anti-fire, UV-protection, can be environmentally controlled in any climate;
4). Wind load: max. 100km/h,Snow load: 75kg/sqm
5). Easy to be assembled and dismantled, removeable, multifunctional, durable.
6). Sizes can be customized (like side/leg height)
Material:
1). Frame: Hard pressed extruded aluminium 6061 /T6 (15HW) which can last over 15 to 20 years. Easy to be assembled and dismantled, movable.
2). Fabric: High quality double PVC-coated polyester , 850g/sqm, 100% waterproof, flame retardant to DIN4102 B1, M2(European standard ), UV resistant, tear resistant, self-cleaning ability. 850g/sqm for roof cover, 650g/sqm for sidewall.
3). Connecter: Strong hot-dip galvanized steel, zinc thickness over 80um.
| Main Profiles: | Available Sections: 203x112x4mm, 255x112x4.5mm,300x120x5/8mm |
| Material: Hard pressed extruded aluminum alloy T6061/T6 |
| Features: Stainless |
| Cover: | Density: 850g/sqm double coated blockout white PVC for roof |
| 650g/sqm translucent white PVC for side walls |
| Features: Water proof,UV resistant,fire retardant(DIN4 102,B1,M2) |
| Components: | Superior enclosure with hot dip galvanized steel |
Specifications:
| Item | Width(m) | Eave Height(m) | Peak Height(m) | Longest Parts(m) | Max WindLoad |
| MT10 | 10 | 4 | 8.3 | 5.6 | 80-100KMH |
| MT12 | 12 | 4 | 8.7 | 7.56 |
| MT15 | 15 | 4 | 8.9 | 8.1 |
| MT20 | 20 | 4 | 11.4 | 10.7 |
| MT25 | 25 | 4 | 11.5 | 10.7 |
| MT30 | 30 | 4 | 13.6 | 10.7 |
| MT40 | 40 | 4 | 15.2 | 10.7 |
Optional accessories:
1). Covers: colourful cover(white, red, blue, green, black), transparent cover
2). Sidewalls: PVC fabric wall, glass wall, sandwich pannel wall
3). Windows: dome or square clear PVC windows, mesh window, glass window
4). Doors: soft PVC rolling door, double-swings glass door, hard PVC door,
5). Wooden flooring system
6). Rain gutters (inner roof beam rain gutter or rain gutter between two tents)
7). Drapers, curtain, lighting, AC, carpet, etc.
Package:
1. aluminum frame packed in membrane film ;
2. hardware packed in solid carton box ;
3. roof and sidewall in professional PVC carry bag ;
4. Customized package.
